TGK Power Tools PC Series Semi-automatic electric screw driver without supply

Short Description:

It is electric screwdriver, when the torque is locked, the cluth will automatically trip, the motor power will be automatically off and the electric screwdriver will stop running.


Product Detail

Video

Product Tags

Product Name Power Tools Industrial Electric Screwdriver
Input voltage AC100-240V
Rated power 35W
Power Adapter EP860E
Torque range 0.5-3.5n*m
Torque adjustment method Adjustment sleeve adjustment (up becomes larger, down becomes smaller)
Range of rotation 900-1350rpm
Speed adjustment method By turning the knob of the power adapter
Interface GB 3 plug
DC Cable Specifications 3Px0.5mm²x1.8m
Power Cord Specifications 3Px0.5mm²x0.5m
Start method Press the red lever to start, release to stop
Direction switch Third gear (up: reverse; middle: stop; down: forward)
Batch size Compatible with all TGK φ6 wind batches (6.35mm hexagon) specification batches
Batch installation Press the locking sleeve, align the card slot into the batch nozzle, release the locking sleeve
Motor 555 motor (flat shaft)
  When the torque reaches the set value, the motor stops rotating, effectively preventing the screw from slipping

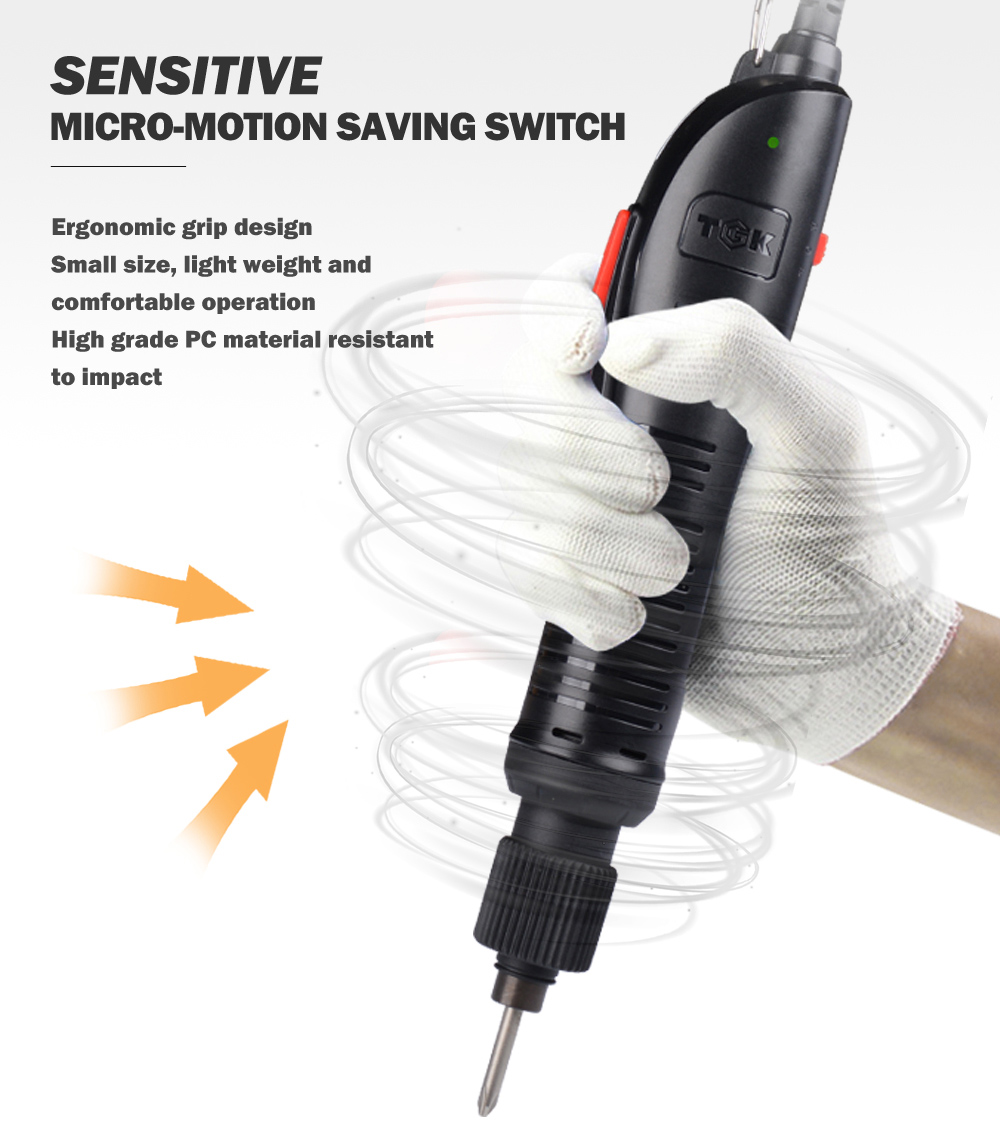

Main feature Ergonomic handle, comfortable to hold, no fatigue during long-term work
Just touch the start-stop switch, which saves time and effort and improves efficiency
The torque is adjusted steplessly from small to large, and the torque is accurate
Three-speed directional switch, easy to remove and fasten screws, convenient and fast
0000_04

TGK PS Series Electric Screw Driver

Low vibration, noise, and electromagnetic interference, it fits environmental request, especially for dustfree working room.

The internal stop device adopts magnetic induction system, it owns high sensitivity, short braking, low impact force, and it is not easy to be broken after being used a long time.

The newest power supply design, very light and compact, it fits 110-220V voltage

The three core power cord adopts silicon material with anti-hardening function and long life feature

The torque setting is very precise, it is suitable for mobile phone, digital camera, and other high accuracy electric products

The shape is designed according to ergonomics, the shell is made of number one class PC material, it is small body, light weight, with resistance to impact, it will not be tired after worker uses it a long time, the working efficiency is improved too muchb

0000_09
0000_06

Our advantage:

1.Long life span, free maintenance, no interference, low noise, low temperature rising, environmental friendly and energy effective.

2.Adopt high performance, powerful, DC motor with carbon brush. Passed 10 million times safety test, precision torsion, sturdy and durable.

3.Torsion signal output(Signal output stop when reach the default torsion value, the screw driver stop automatically, protect the product from damaging, no screw to be stripped.

4.Suitable for hand operation, especially for production assembly lines.

5.Mainly used for 3C,4C products, such as computers, communication products, network products, white digital appliance, auto electronics etc.

6.Obedience to Taiwan excellent manufacturing technology, quality assurance, precision industrial fastening tool.
Choosing TGK, you will get not only the products, but also the better service, and better operating mode.
